LPT Series

Cylindrical, Metal, Complete Coupling in a Quarter Turn, Harsh Environment, Stamped & Formed Contacts, Power and Signal Connector

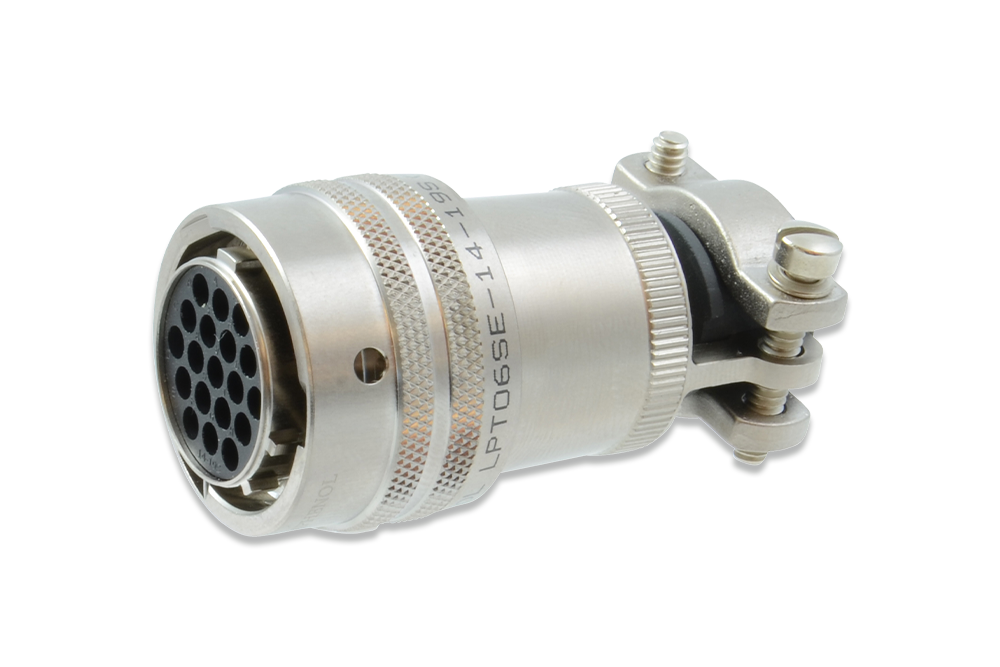

    https://amphenol-industrial.com/wp-content/uploads/amphenol/LPT-Plug-(SR).png
    https://amphenol-industrial.com/wp-content/uploads/amphenol/LPT-Plug-1.png
    https://amphenol-industrial.com/wp-content/uploads/amphenol/LPT-Receptacle.png
CATALOG OR BROCHURE
CATALOG OR BROCHURE

Description

The LPT Series is rooted in the MIL-C-26482 Series I and draws inspiration from Amphenol’s original PT Series. This connector series is designed to strike a balance between cost-effectiveness and uncompromised quality. It takes the form of a cylindrical bayonet connector, characterized by its aluminum shell and precision stamped and formed crimped contacts.

The LPT Series offers a budget-friendly solution without compromising on the high standards of quality that Amphenol is known for. This connector series provides reliability and performance at an affordable price point, making it an ideal choice for various applications.

Features & Benefits

Aluminum shell construction provides high strength while being light in weight
Multiple shell plating options (up to 500H salt spray protection)
Stamped and formed crimp contacts with a 3 tine retention system
Quick positive bayonet coupling
5 key/keyway mating
Operating temperature range: -40°C to 125°C
High shock and high vibration resistance
Machined contacts available

Specifications

Electrical
Voltage
250-2300V
Current Rating
7.5A ~ 23A
Number of contacts
2 to 55
Certifications
UL/TUV in process
Mechanical
Mating cycles
500
Wire size (mm²)
12 to 22 AWG
Keyway
5
Material
Contact plating
Tin/nickel/gold
Contacts
Copper alloy
Sealing components
Rubber
Shell
Aluminum
Environmental
Temperature range
-40°C~125°C
Protection class
IP67
RoHS
Yes
REACH
Yes
