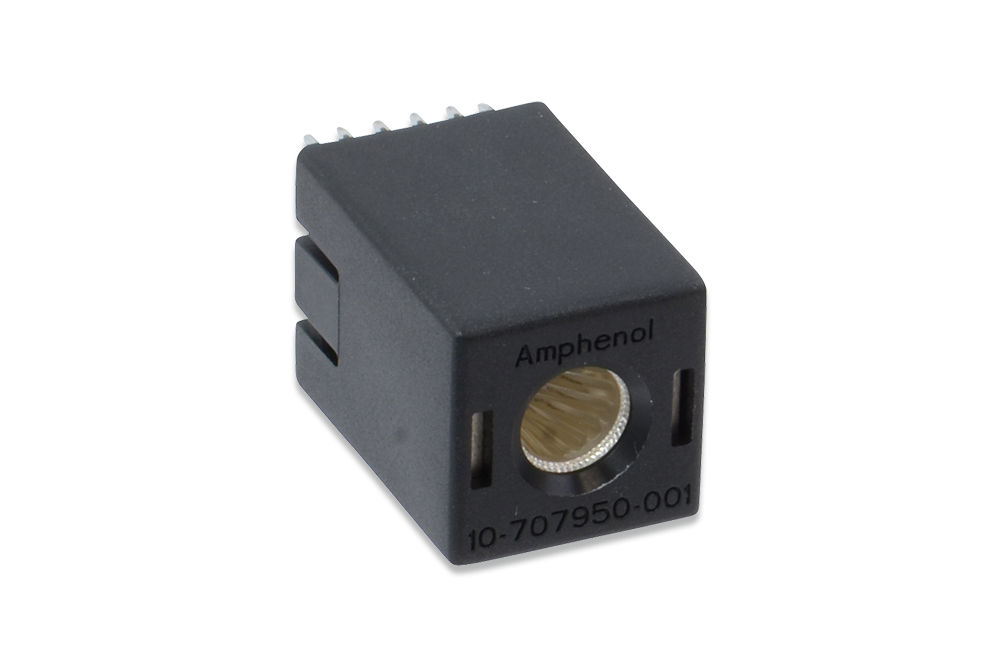

RADSOK® PowerBlok™

High Amperage, Board Level, Power, R4 RADSOK® Technology
    https://amphenol-industrial.com/wp-content/uploads/amphenol/PowerBlok-1.png
    https://amphenol-industrial.com/wp-content/uploads/amphenol/PowerBlok-2.png
    https://amphenol-industrial.com/wp-content/uploads/amphenol/PowerBlok-3.png
CATALOG OR BROCHURE
DATA SHEET

Description

In the modern era, electronic devices require more power than ever. Traditional board-level interconnects often require sacrificing board space to accommodate higher amperage or increasing the thickness of copper traces on the PCB or backplane. Alternatively, some solutions involve adding more wires to the incoming power cable. Amphenol’s RADSOK® PowerBlok™ offers a straightforward solution to deliver increased power to the board.

Features & Benefits

High Power to Board in a Small Footprint
Compact, 0.618 x 0.618 inch Rectangle
3.0mm PowerBlok™ carries 30A.
Backplane Power Interface with Compliant Pins for Signals
TouchProof Cover
Eliminates Threaded Fasteners
No Special Crimp Tools Needed
Application Specifics Pins
Radial Socket Design Ensure Multiple Points of Contact
Silver Plated Electrical Engagement Area Standard

Specifications

Electrical
Current Rating
35A to more than 200A
Number of contacts
1
Touch proof
Yes
Mechanical
Cable O.D.
2.4, 3.0, 3.6, 5.7, 6.0, etc.
Mating cycles
100+
Wire size (mm²)
2.4, 3.0, 3.6, 5.7, 6.0, etc.
Locking element
Quick Push-Pull
Material
Contact plating
Gold and Silver
Contacts
Copper
Shell
Metal
Environmental
Temperature range
-40~85℃
Flammability
UL94-V0
RoHS
Yes
REACH
Yes
